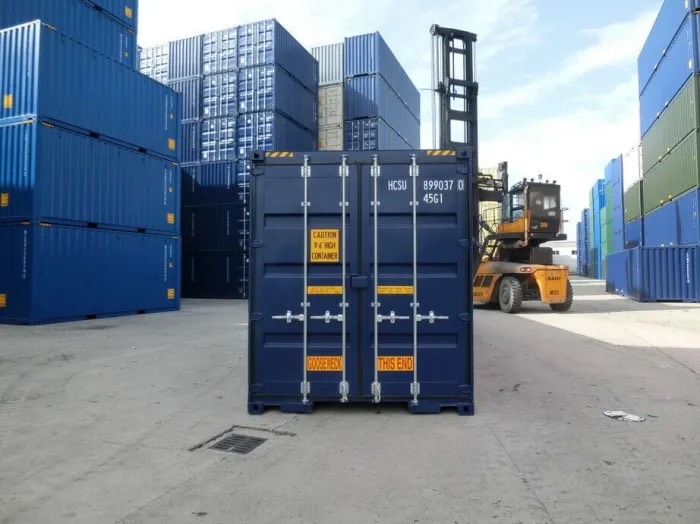

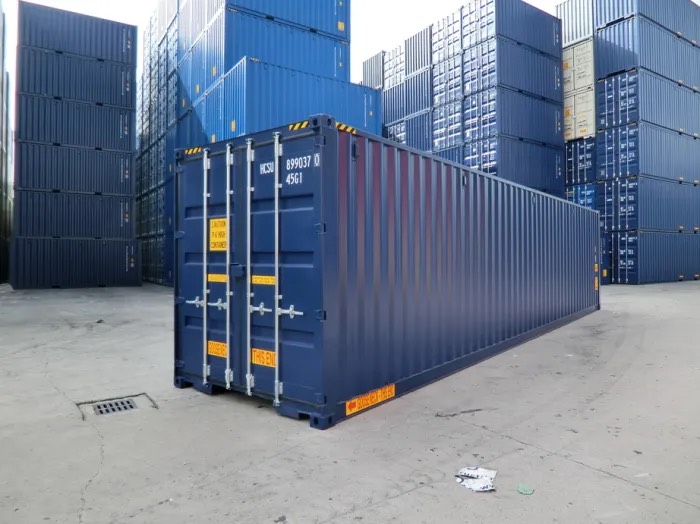

40FT High Cube Double Door Shipping Container
Dual Access. Maximum Flexibility. Engineered for Efficiency.
The 40FT High Cube Double Door Shipping Container delivers high-volume storage and unmatched accessibility with cargo doors at both ends. Designed to support zone-based loading, inventory separation, and efficient freight handling, this unit is ideal for commercial, industrial, and intermodal use.
Its high cube height of 9’6” allows for increased internal clearance, while marine-grade CORTEN steel construction provides long-lasting resistance against corrosion, weather, and operational wear.
This container is ISO-compliant, CSC certified, and ready for international transport or site-based storage operations.
Specifications Overview
| Attribute | Specification |
|---|---|
| External Dimensions | 12.192 m × 2.438 m × 2.896 m |
| Internal Dimensions | 11.978 m × 2.350 m × 2.689 m |
| Door Openings (Both Ends) | 2.340 m W × 2.585 m H |
| Internal Volume | 76 cubic meters |
| Tare Weight | 4,100 kg |
| Max Payload | 26,380 kg |
| Max Gross Weight | 30,480 kg |
| Stackability | ISO-compliant, fully stackable |
| Color (Standard) | RAL 5013 Blue (custom RAL options available) |
Construction & Functional Features
- Container Type: 40FT High Cube with Double End Doors
- Material: CORTEN marine-grade corrosion-resistant steel
- Doors:
- Dual ISO swing doors (front and rear)
- Integrated lockboxes on both ends
- Reinforced locking gear with double-high bar system
- Ventilation: Standard passive air vents on both sides
- Flooring:
- Standard: Hardwood marine-grade plywood
- Optional: Steel plate flooring (by request)
- Certification: CSC certified for intermodal and international use
- Handling Compatibility:
- Forklift pockets
- Crane corner castings
- Chassis/trailer systems for overland transport
Performance & Structural Integrity
- ISO 1496-1 compliant for stacking, lifting, and securement across global freight platforms
- Weather-sealed and reinforced for long-term external use in warehouse yards, job sites, or exposed terminals

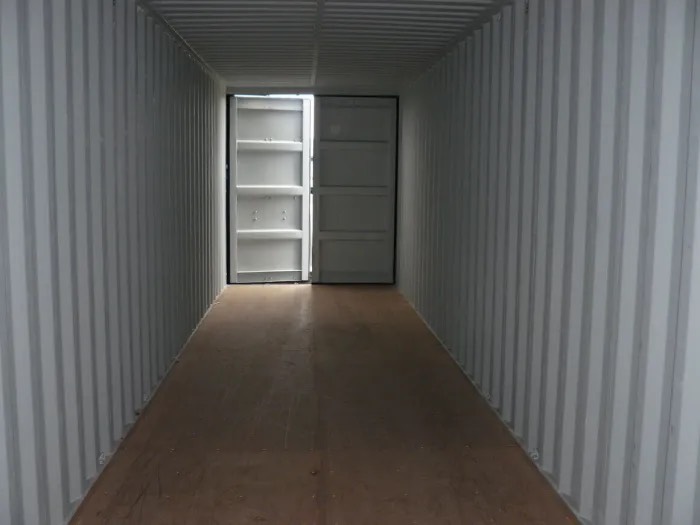

- Increased ceiling height allows greater storage density and supports tall equipment, stacked pallets, or modular interior designs

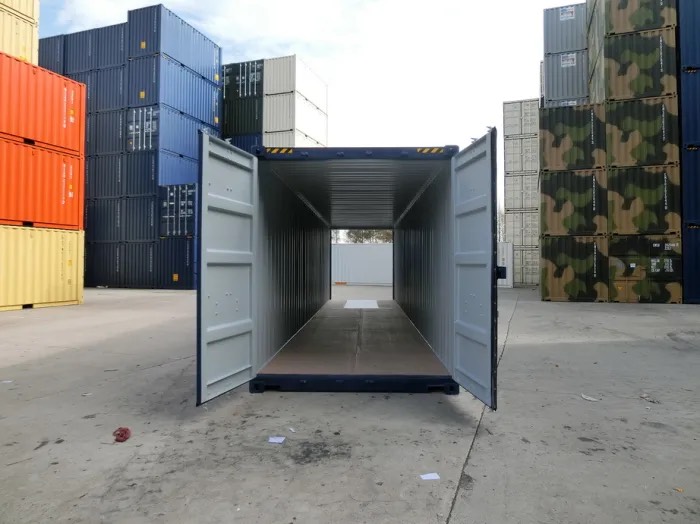

- Dual access points reduce turnaround time for loading and unloading operations, eliminating the need to shift inventory
- Lockable doors at both ends provide added control over cargo zones and security during transit or static deployment
Applications & Use Cases
Warehouse & Inventory Management
Supports dual-end entry for zone storage, quick inventory rotation, and streamlined loading dock operations.
Agricultural & Farm Use
Provides front and rear access to store grains, feed, or equipment without repositioning contents.
Construction & Field Deployment
Ideal for mobile site offices, tool lockups, and equipment segregation in rotating job sites.
Modular Conversion & Custom Builds
Used in pop-up retail, container cafés, mobile field units, or duplex access structures with custom partitioning.
Intermodal & Export Logistics
Compliant with global shipping standards, ready for port handoffs, train loading, and overland haulage.
Delivery & Inspection Readiness
Each 40FT High Cube Double Door Shipping Container is:
- Built to ISO 1496-1 standards
- Inspected for frame integrity, floor strength, door alignment, and seal condition
- Delivered with lifting-ready corner castings and chassis compatibility
- Available with optional modifications upon request (color, flooring, locks)
Inspection reports and scaled dimensional drawings are available prior to delivery.
